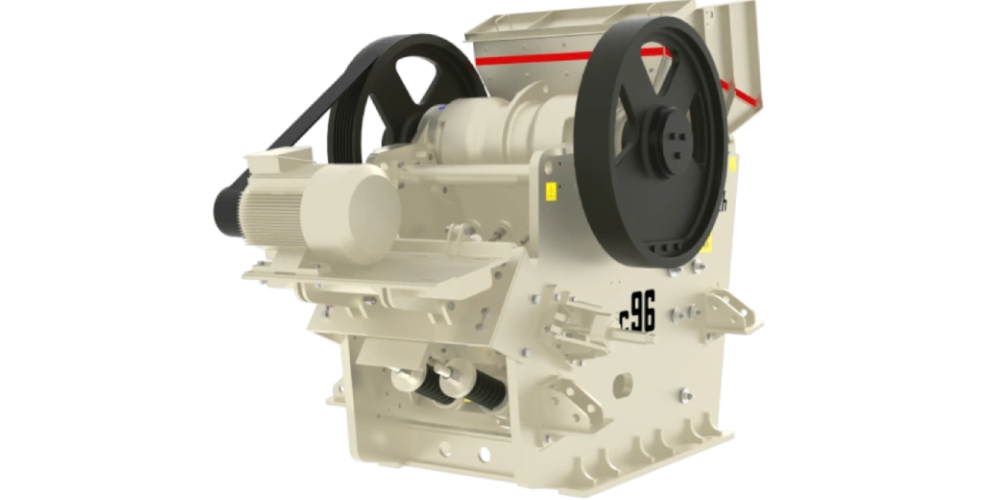

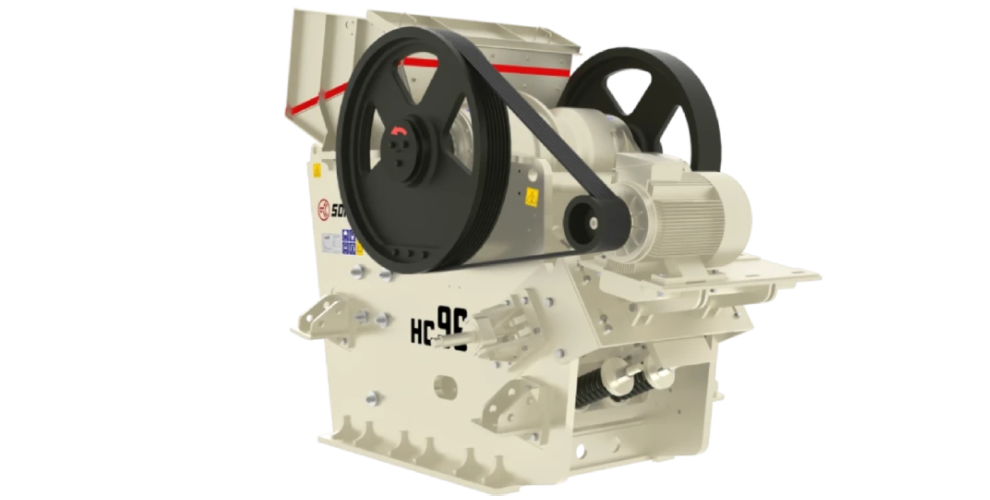

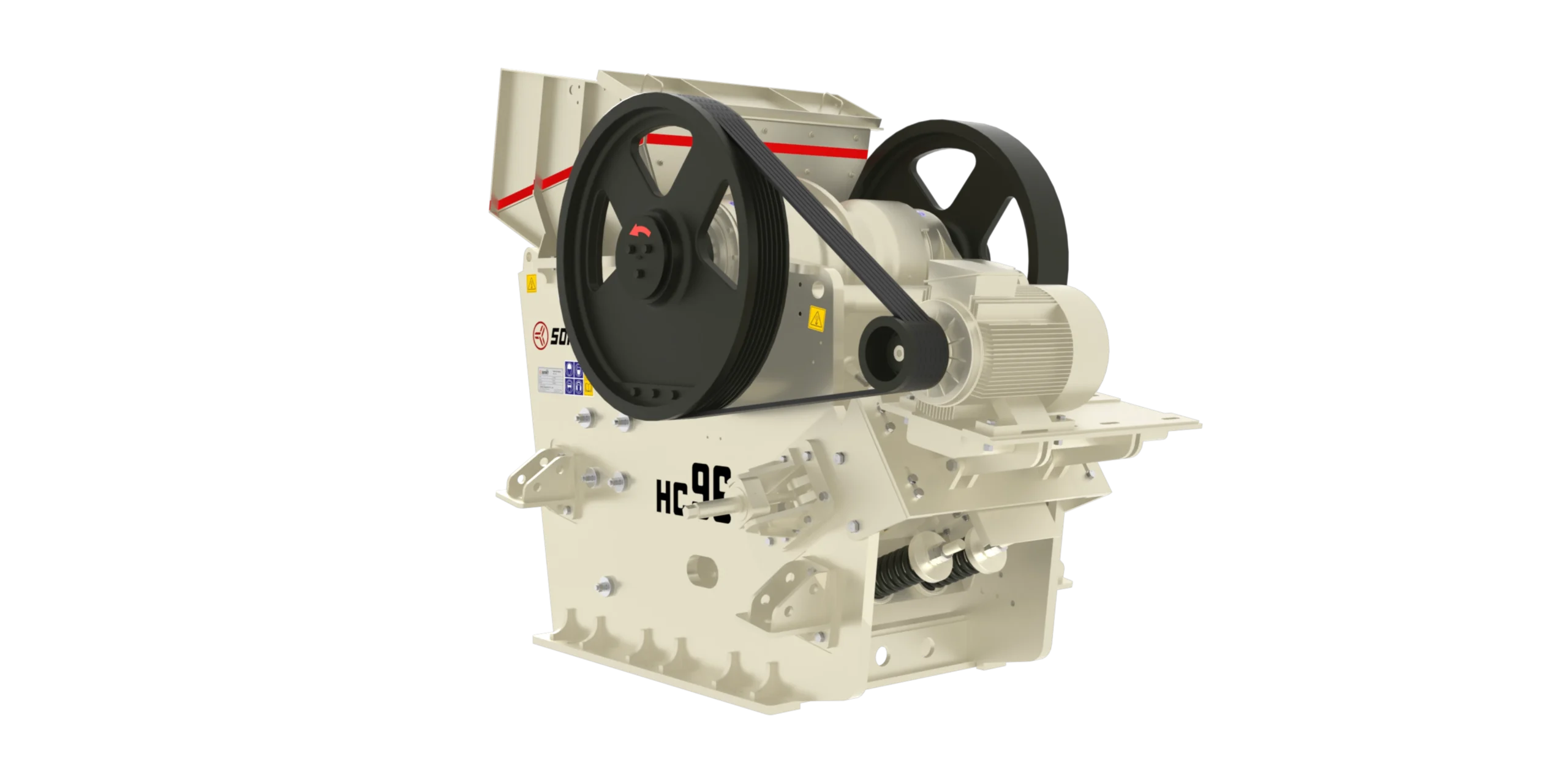

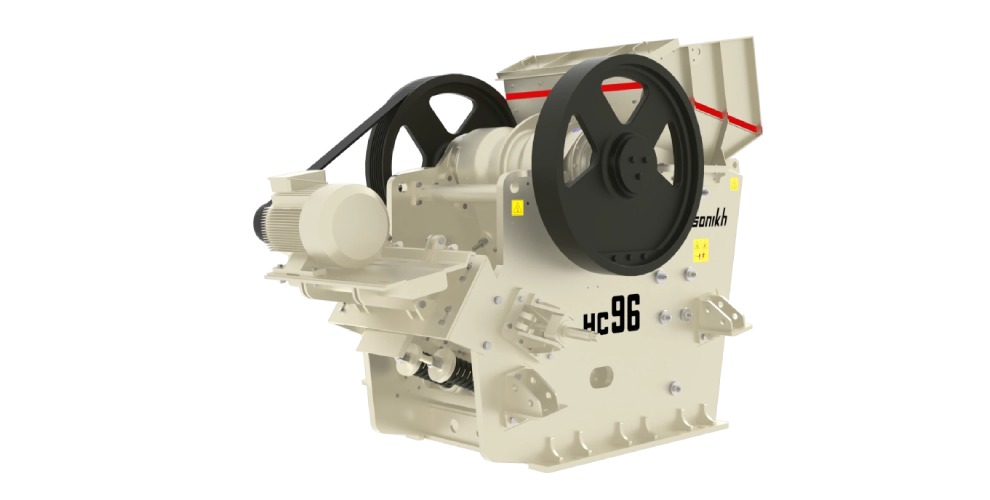

JAW CRUSHERS HC SERIES

Sonikh Jaw Crushers are engineered for high performance in the toughest environments & designed to optimize primary crushing applications. Our advanced jaw crusher design, combined with premium material specifications, delivers an ideal crushing solution for customers. With extensive experience in the crushing industry and expertise in metrology, we ensure the highest manufacturing standards for our machines. The SONIKH HC Series Jaw Crusher was developed to meet the growing demand for efficient and cost-effective crushing of tough feed materials, such as quarry rocks and hard mineral lumps, in both quarrying and mining industries .

OUTSTANDING MATERIAL HANDLING CAPACITY

The Sonikh HC Series jaw crushers offer exceptional material intake due to their optimally proportioned feed opening, with an ideal width-to-depth ratio. This design prevents time-consuming bridging and allows rocks to flow smoothly into the crushing chamber. The HC Series is capable of processing very coarse materials, minimizing the need for additional blasting or hammering. An optional feed chute is also available, ensuring continuous material flow from the feeder directly into the crusher cavity.
Download Brochure

Our Advantages

  • Safe & Easy Operation & Maintenance – Designed for user-friendly
    handling and effortless servicing.
  • Proven & Reliable Technology – Welded frame design ensures
    durability and long-lasting performance.
  • High Capacity & Reduction – Deep symmetrical crushing chamber
    and optimized nip angle maximize size reduction and production
    efficiency.
  • Larger Feed Handling – Wider intake opening enables processing
    of bigger materials with ease.
  • Robust & Solid Construction – Split-free bearing housing and high
    rigidity-to-weight ratio welded frame provide superior strength.
  • Enhanced Safety Features – Includes guarding for retraction
    arrangement, ensuring a secure working environment.

With SONIKH Jaw Crushers, you get efficiency, strength, and
safety—all in one powerful solution!

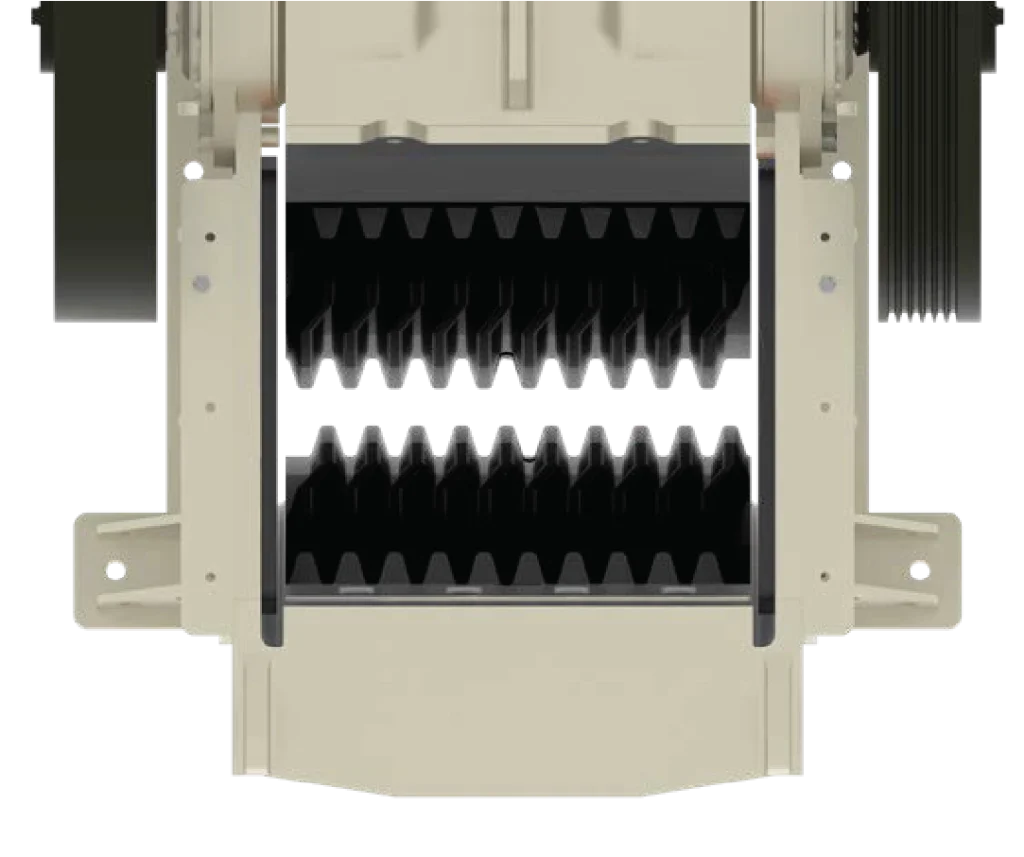

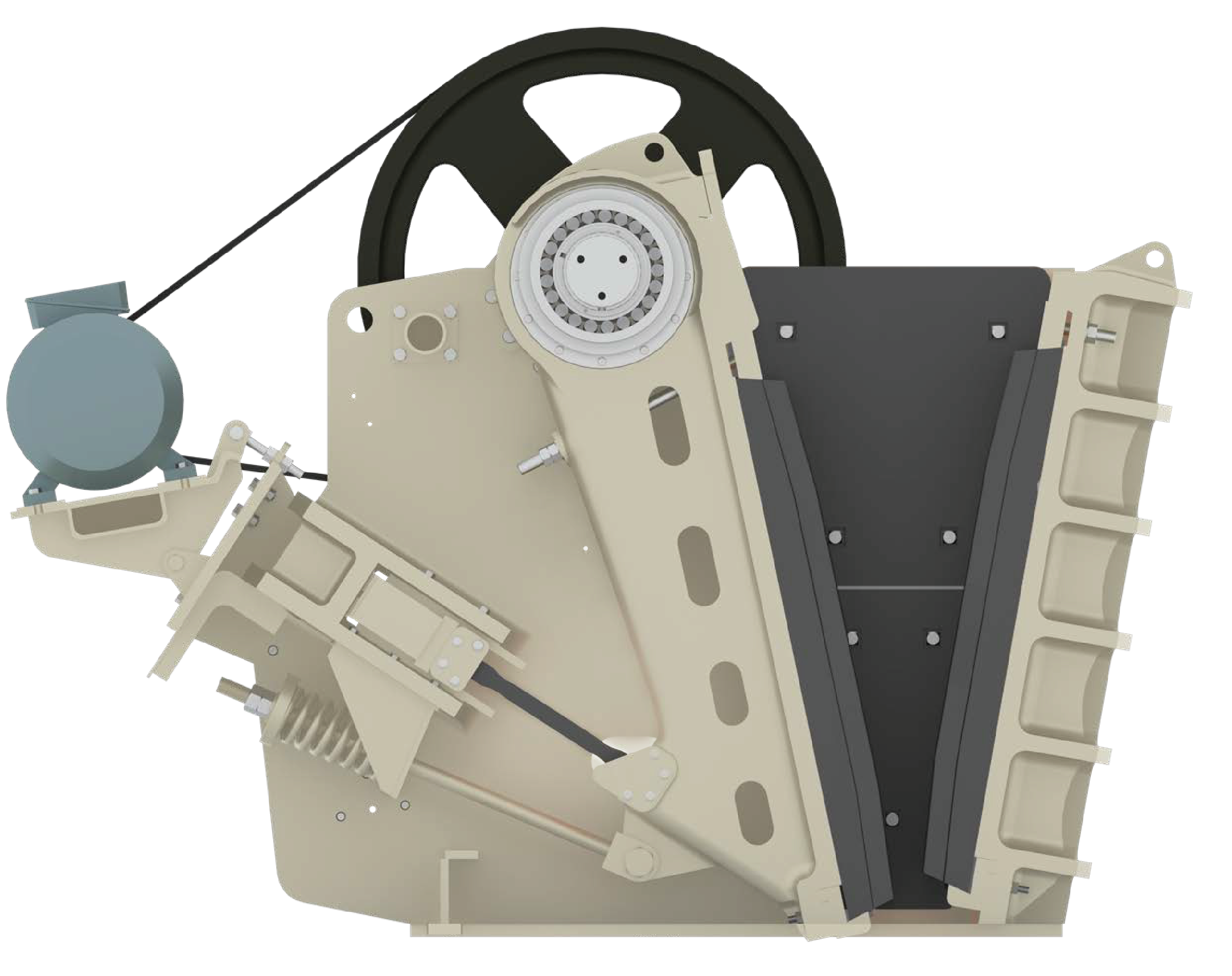

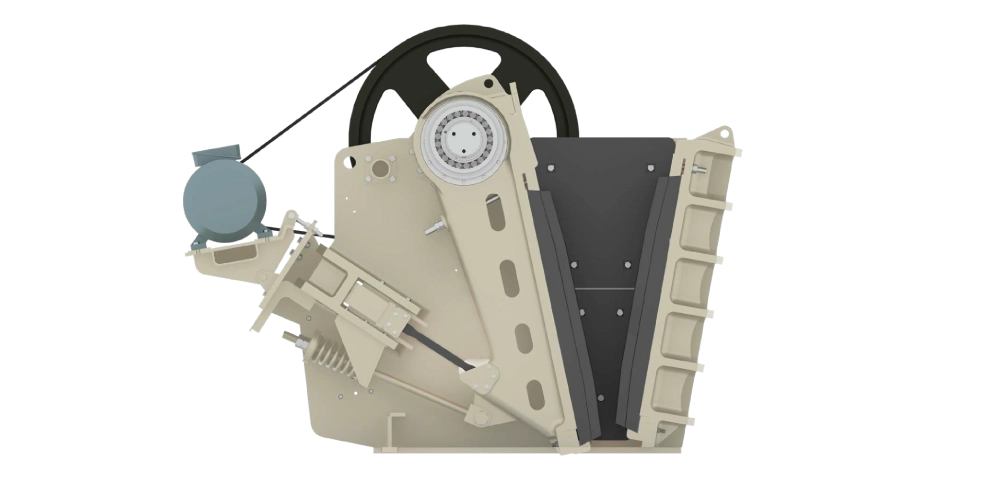

Wear and Impact resistant
jaw plates are designed and
selected for each application
individually

Optimal Nip Angle for Superior
Crushing Efficiency
The precise nip angle between the movable and
fixed jaw dies ensures a strong bite and smooth
material flow, even when handling slippery feed.
This design minimizes wear on the jaw dies,
lowering operating costs. With a secure grip, the
jaw crusher efficiently crushes rocks throughout
the entire cavity. Additionally, an intermediate
plate can be used to further enhance the nip
angle, improving overall performance.

Jaw plates are quick and
easy to Install with the help of
clamping wedges that fix
the plates to the crusher body

Heavy-duty, MIG welded, stress
relieved, high strength steel frame
withstands the constant
pressures of crushing

Solid cast steel pitman
ensures highest strength while
reducing the total weight
Jaw plates are quick and
easy to Install with the help of
clamping wedges that fix the
plates to the crusher body

common right-hand and
left-hand side liners are
made of alloy steel for
longer service life.

Long stroke tension springs
minimise the adjustments and
maintain proper toggle
pre-load, preventing
premature toggle seat wear

Steep angle toggle plate
allows the necessary aggressive
crushing motion in the lower chamber.

Integral motor base is mounted on
the main frame of the crusher which
reduces the need for space and
excessively long v-belts

Wear and Impact resistant
jaw plates are designed and
selected for each application
individually

Optimal Nip Angle for Superior
Crushing Efficiency
The precise nip angle between the movable and
fixed jaw dies ensures a strong bite and smooth
material flow, even when handling slippery feed.
This design minimizes wear on the jaw dies,
lowering operating costs. With a secure grip, the
jaw crusher efficiently crushes rocks throughout
the entire cavity. Additionally, an intermediate
plate can be used to further enhance the nip
angle, improving overall performance.

Jaw plates are quick and
easy to Install with the help of
clamping wedges that fix
the plates to the crusher body

Heavy-duty, MIG welded, stress
relieved, high strength steel frame
withstands the constant
pressures of crushing

Solid cast steel pitman
ensures highest strength while
reducing the total weight
Jaw plates are quick and
easy to Install with the help of
clamping wedges that fix the
plates to the crusher body

common right-hand and
left-hand side liners are
made of alloy steel for
longer service life.

Long stroke tension springs
minimise the adjustments and
maintain proper toggle
pre-load, preventing
premature toggle seat wear

Steep angle toggle plate
allows the necessary aggressive
crushing motion in the lower chamber.

Integral motor base is mounted on
the main frame of the crusher which
reduces the need for space and
excessively long v-belts

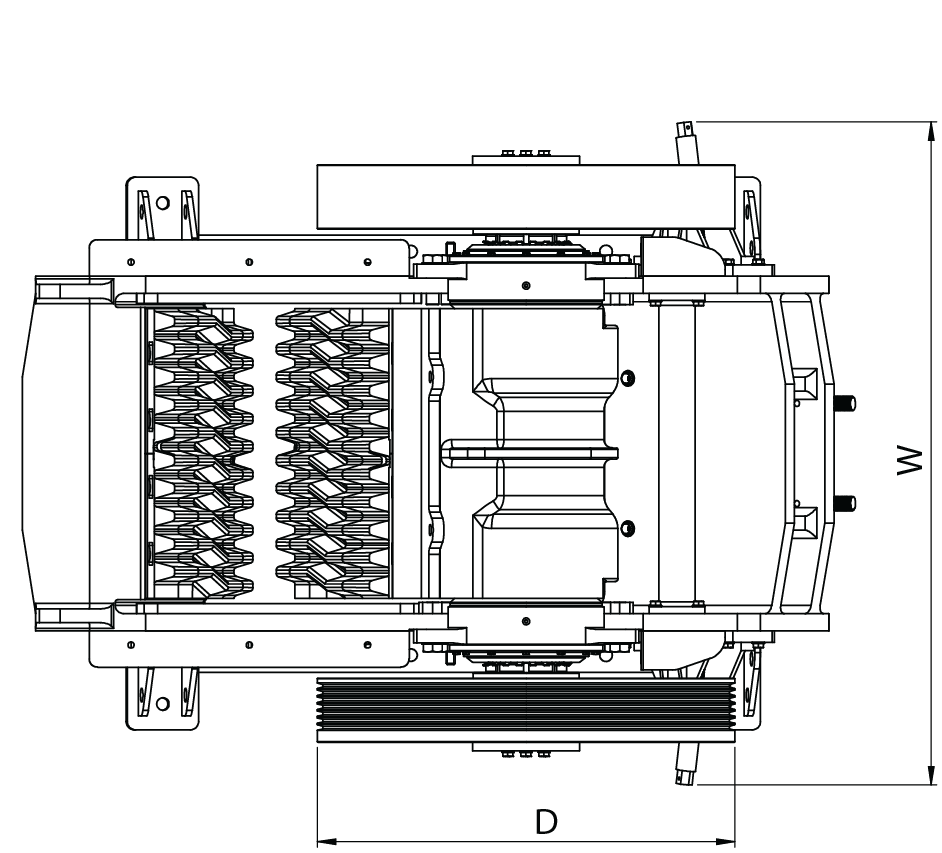

GENERAL DIMENSIONS

MODEL UNIT HC56 HC68 HC96 HC108 HC118 HC130 HC135 HC140
H Max, Max height from jaw
MM
1685
1900
2610
2810
2900
3110
3300
3900
TF Overall feed height
MM
1030
1600
1910
2050
2150
2360
2420
2670
L. Max Length
MM
2175
2350
2750
3000
3060
3150
3300
3540
W, Max Width
MM
2010
2150
2185
2510
2580
2650
2650
2810
D. Flywheel diameter
MM
1100
1200
1400
1500
1500
1600
1800
1800
Crushers speed
RPM
290
290
260
240
240
220
220
220
Motor Power
HP
60
75
120
150
180
200
215
240
KW
45
55
90
110
130
150
160
180
Total Weight
TON
11.6
17.2
19.5
24
26.8
33
36.5
45
OPERATING LIMITS
Feed Opening
MM
762 X 508
812 X 609
914 X 711
1066 X 762
1117 X 812
1219 X 914
1219 X 1066
1371 X 1219
INCH
30×20
32×24
36×28
42×30
44×32
48×36
48×42
54×48
CSS Min-Max
MM
62-180
75-200
100-220
100-250
125-250
125-250
125-300
150-300
INCH
3-7
3-8
4-9
4-10
5-10
5-10
5-12
6-12

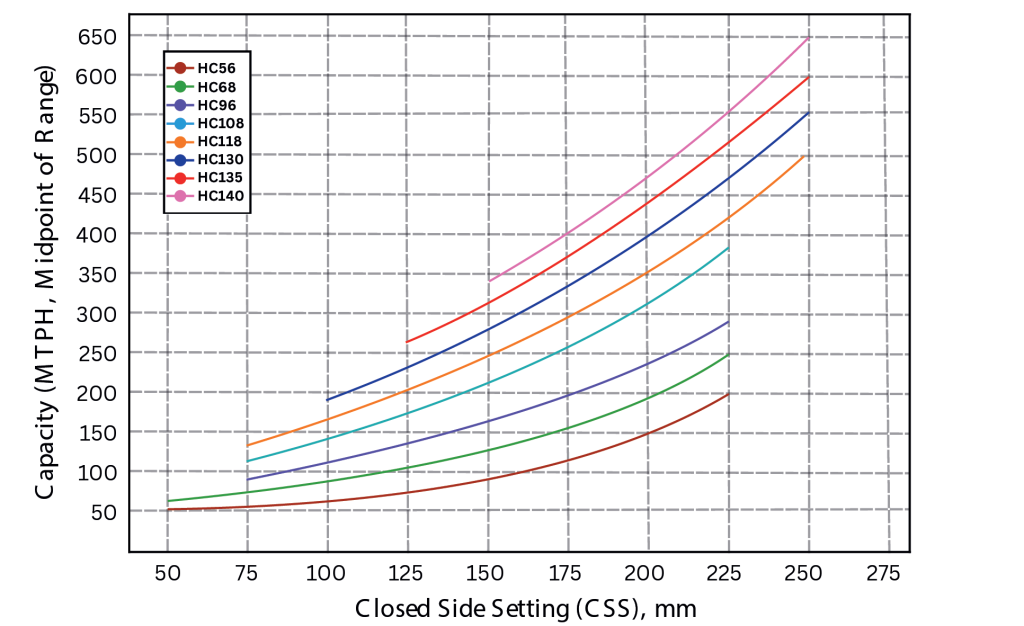

PERFORMANCE CURVES: These curves are for guidance only, as crusher output varies with feed material properties. For medium-hard material, about 75% of the product is typically finer than the Closed Side Setting (CSS), though this may change depending on material characteristics

TECHNICAL SPECIFICATION

MODEL UNITS (CSS) CRUSHER CLOSED SIDE SETTING
50mm
75mm
100mm
125mm
150mm
175mm
200mm
225mm
250mm
HC56
mtph
50-70
60-80
75-90
80-120
100-130
110-140
130-180
150-200
–
HC68
mtph
60-80
70-100
80-120
100-140
120-150
140-200
160-220
180-250
–
HC96
mtph
–
80-120
100-150
120-170
150-220
170-225
200-250
220-280
–
HC108
mtph
–
110-150
140-180
220-280
240-300
280-340
300-360
320-380
–
HC118
mtph
–
120-180
150-200
200-260
260-320
300-360
320-380
400-450
420-500
HC130
mtph
–
–
180-220
250-300
300-360
320-380
360-400
420-480
500-550
HC135
mtph
–
–
–
260-320
300-380
340-420
420-480
450-520
480-600
HC140
mtph
–
–
–
–
340-400
360-440
440-480
500-600
550-650

NOTE:

• Capacity figures indicated in the chart are approximate and are based on bulk density of 100 Ibs/cft. or 1600 kg per Cu.M. with following assumptions.
           a. Continuous regulated feed.
            b. Maximum lump size does not exceed 80% of the size of mouth opening. With standard jaw plates. Actual capacities will depend on the Crushing
                  characteristics of the material. Capacities indicated are the medium hard materials. While crushing harder materials capacity figures are likely to change.
• For achieving cubical product from the crusher usage of separate jaw plates are recommended. While using serrated jaw plates capacity figures will be reduced.
• All current models are provided with grease lubricated.
• The table indicates standard Models only. Special Size of jaw crushers can be offered against specific requirement on demand

MODEL MP16 MP20 MP24 MP30 MP36 MP42 MP48 MP54
DATA
UNIT
L – Overall Length
MM
1885
1910
1697
1980
2085
2075
2075
2325
TH – Total Height
MM
1340
1440
1335
1684
1720
1720
1720
1783
W1 – Width
MM
1000
1050
1110
1300
1485
1620
1746
1983
W2 – Overall Width
MM
1365
1570
1624
1822
1763
2112
2385
2432
TF – Total Feed
MM
870
940
835
1028
1028
1025
1025
1100
F1 – Foundation
MM
730
730
830
1000
1100
1100
1100
1200
F2 – Foundation
MM
820
920
915
1150
1300
1600
1600
1820
D – Flywheel Dia
MM
1000
1000
1000
1100
1100
1200
1200
1250
MODEL MP16 MP20 MP24 MP30 MP36 MP42 MP48 MP54
MAX, FEED SIZE
MM
150-200
150-200
150-350
150-200
150-200
200-250
200-250
200-250
CAPACITY
MTPH
15-30
16-40
22-50
28-60
35-70
40-80
45-90
48-100
FLYWHEEL SPEED
RPM
350
350
350
340
340
340
320
320
MOTOR POWER
KW / HP
22/30
30/40
37/50
45/60
55/75
55/75
75/100
90/120
WEIGHT
TON
4.5
5.6
6.5
7.8
10.5
13.5
15.5
17.2

JAW PLATES FOR ALL TYPES OF FEED

Sonikh Offers the wide range of manganese jaw plates options can be mixed and reversed to ensure optimal, versatile crushing. Our jaw plate profiles and thicknesses precisely suit various applications, such as quarrying, mining, aggregate production. Each application benefits from optimized tooth spacing, profile design, jaw thickness, and material selection to deliver dependable and long-lasting performance. Sonikh jaw plate fixing components are highly durable and designed for quick replacement, helping to further reduce wear part-related expenses. Additionally, we offers custom jaw designs for specialized uses, along with optional special cheek plates.

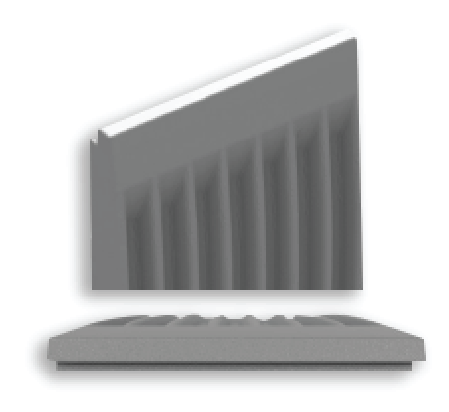

Flat Tooth

Broad tooth profile maximizes liner life

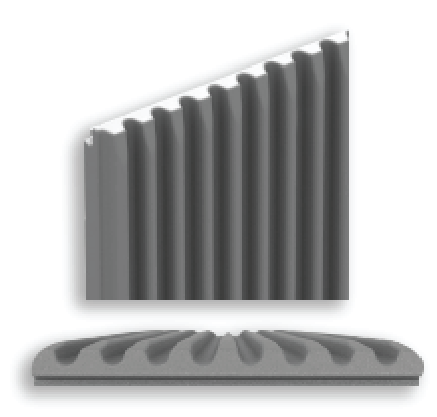

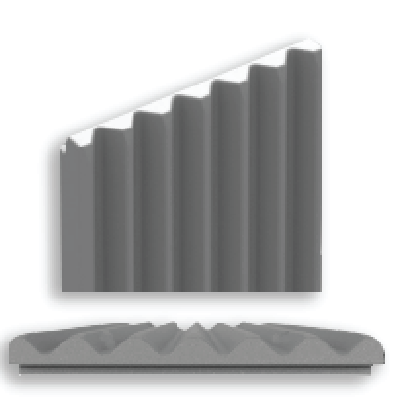

Corrugated

Moderate tooth spacing good for all purpose applications

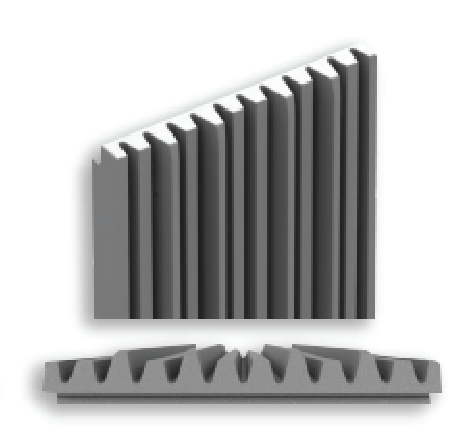

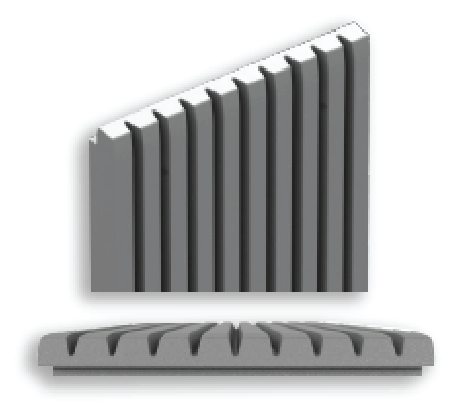

Sharp Tooth

Moderate tooth spacing good for all purpose applications with slightly less wear life

Bellied - Filled

Helps maintain a high position of crushing- Filled ends provide maximum liner life

Anti - Slab

Uneven height generates less ‘slabby’productBroad tooth profile maximizes liner life

BENEFITS OF CHOOSING SONIKH JAW CRUSHERS

Engineered for superior performance in demanding conditions, Sonikh jaw crushers are designed to maximize efficiency in primary crushing tasks. They come with a ready-to-use plug-and-play setup for quick installation and commissioning, along with a Reliability and Protection package to enhance operational uptime.

Safe To Operate

Excellent Product

Durable & Rigid Design

Efficient And Reliable

Enquire Now

SONIKH HC Series Jaw Crushers are built to deliver unmatched performance and reliability in primary crushing operations. Each unit comes fully equipped with a feed hopper, V-belt guard with motor bracket.The versatile, reversible jaw plates offer extended wear life and adaptability, ensuring powerful, efficient, and
trouble-free crushing every time.
